Ramair Performance Air Filter + Red Air Intake Hose & Turbo Elbow -A3 S3 TSI MQB

This is a replacement panel filter for a range of VAG vehicles. For a full list of fitments see compatibility chart.

*Please note this is not suitable for vehicles with the MAF Sensor on the inlet pipe*

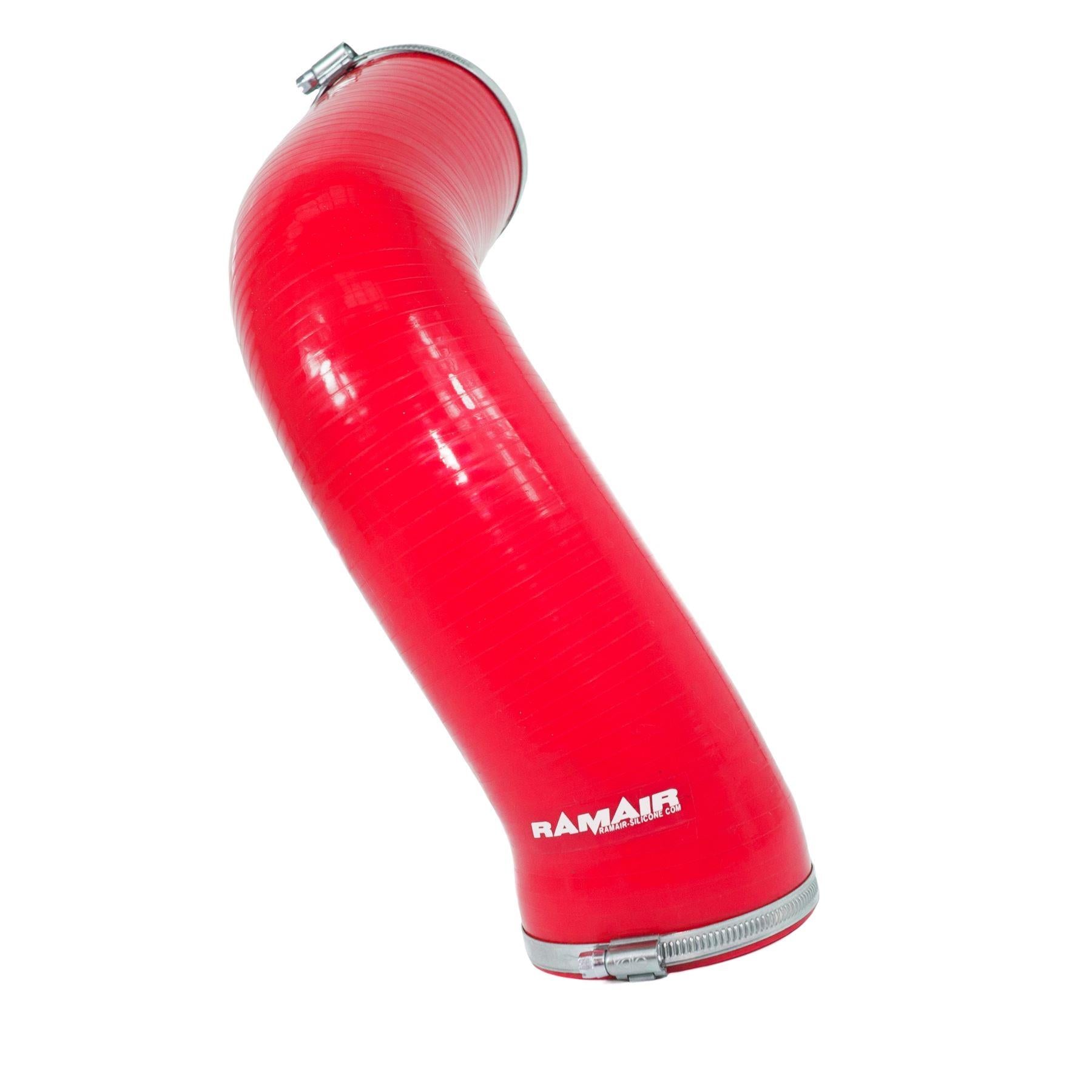

Silicone Intake Pipe

The Ramair Silicone Intake Pipe has been designed to replace the standard OEM plastic induction hose on the 2.0 TSI EA888 engine in the VW Golf mk7 GTI, VW Golf mk7 R, Audi S3, SEAT Leon Cupra and other MQB platform vehicles. The hose is constructed to provide a constant radius reducing restriction in the initial stage of the intake tract and is a direct replacement for the factory pipework. The hose is supplied with a pair of high quality Stainless Steel W2 hose clamps replacing the difficult to use OEM spring clamps.The hose is made from high-quality mutli-ply silicone with fabric mesh reinforcement.It can be used in conjunction with the standard factory air box or any aftermarket induction kit that mounts to the standard air box position.

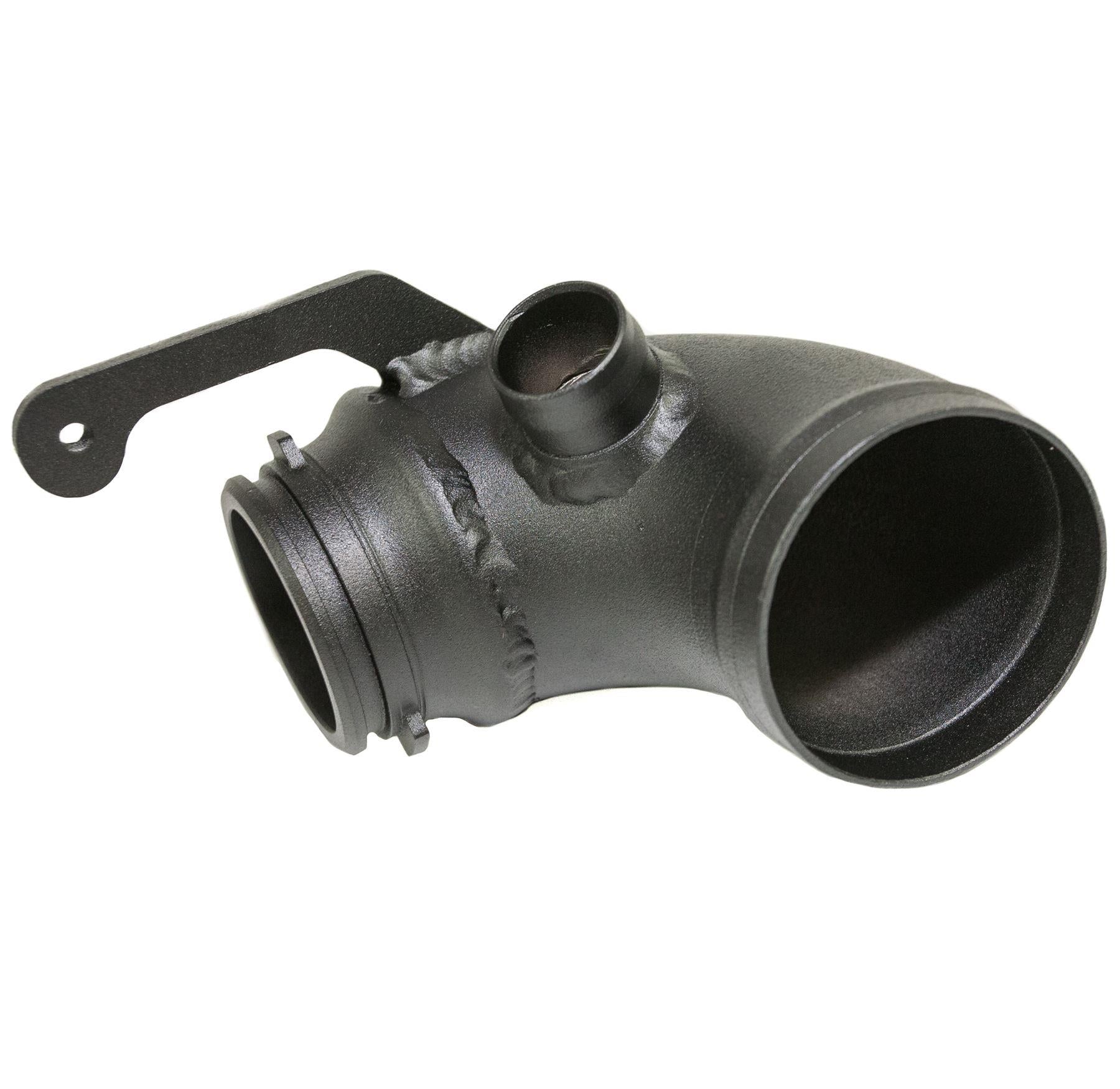

Oversize Turbo Inlet Elbow

This is an over size turbo inlet pipe for the IHI turbo chargers used on the 2.0 and 1.8 TFSI (EA888) engines used in MQB chassis vehicles such as (but not limited to) the Golf GTI (mk7) and Audi S3 (8P). This is a direct replacement for the standard turbo inlet elbow and is compatible with the OEM intake hose and air box. The inlet elbow comes with all the fittings required and is supplied with clear step-by-step photographic instructions. Supplied with the kit is a replacement O-ring in case the standard part is worn or perished. This part allows for increased potential airflow and slightly increased induction sound. The inlet elbow is made from light weight aluminium tube with CNC machined connections and a laser cut bracket, is fully TIG welded and powder-coated in a textured black finish for an OEM look.

Features

• High flow, synthetic nanofiber filtration media
• Fits in the OEM Airbox and replaces inefficient paper filter
• Easy to clean using our filter maintenance kit - CK-003
• Precision injection moulded for a perfect fit
• Guaranteed surface area using high quality custom blended polymer

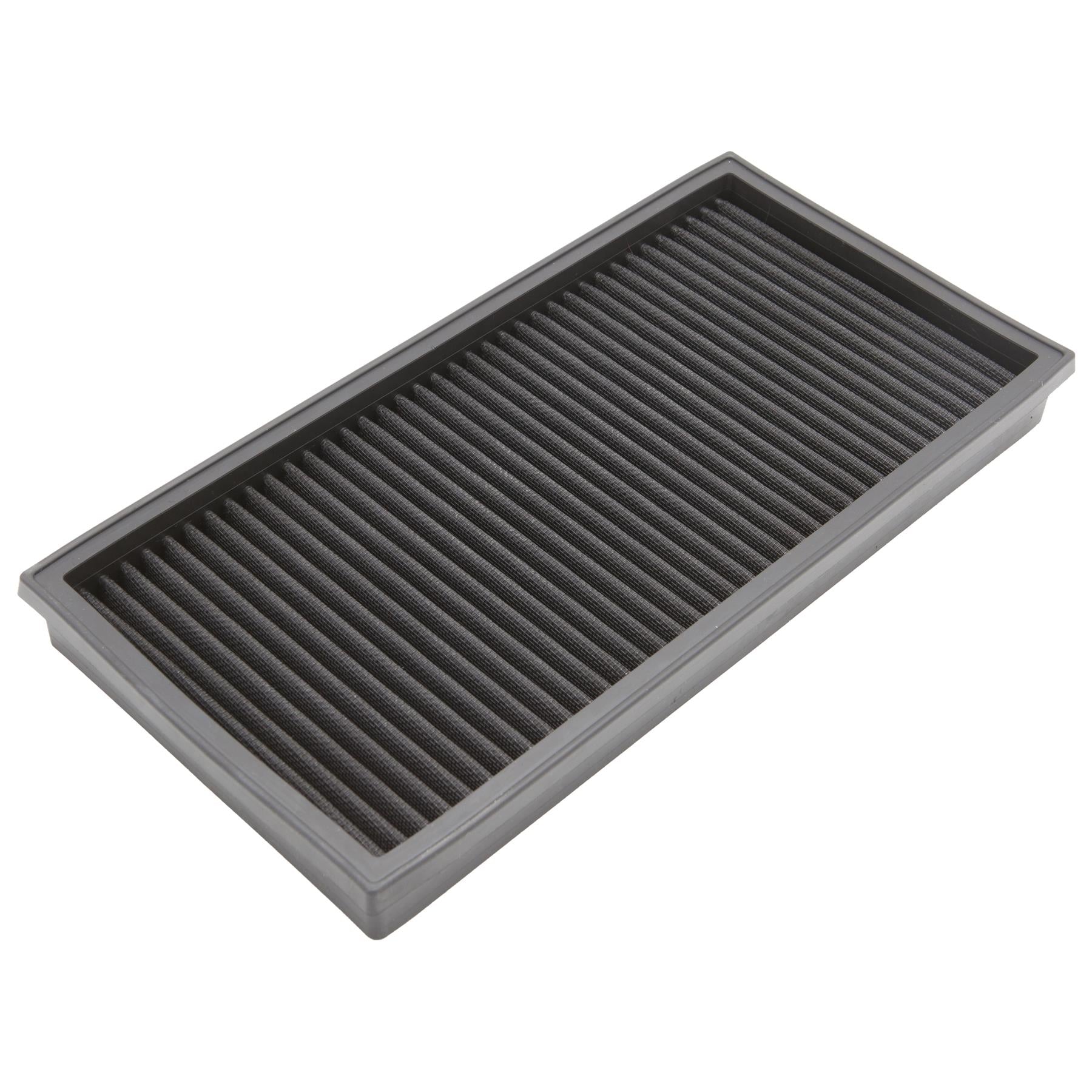

What Does It Do?

This PRORAM performance filter has been designed to replace your standard OEM air filter inside your vehicles air box. These filters are made using a high quality, high flow, synthetic nanofiber filtration media which is pleated to maximise surface area and in turn increase air flow. Utilising over 35 years of experience in the field of motorsport filtration the PRORAM range by Ramair is the premium choice on the market today for your fast road or track car.

Filter Length: 290mm

Filter Width: 177mm

Filter Shape: Rectangle

Filter Material: 15mm Dual Layer Foam

If you have any queries on product fitment then please contact us via 01793 296 344 or on our live chat and one of our brand associates will be more than happy to assist.
